ArmA 3 QGIS Real World Data Tutorial by Ross

This process has often been described using Global Mapper, but I wanted to detail the equivalent steps within the open source (free) GIS app - QGIS.

The goal was to achieve an export satellite image and heightmap with the same or better quality than would be possible with Global Mapper.

I've used GDAL command lines where possible, which simplifies the process a little, and reduced additional processing on the data.

The following software versions were used for this tutorial:

QGIS v3.4.3

Terra Incognita v2.45

I have referenced Terra Incognita because i felt it was the easiest way to obtain satellite data in the oziexplorer map format - see this tutorial for help using Terra Incognita.

First an overview of the steps required:

For Heightmap:

Load heightmap into QGIS (drag and drop)
Set QGIS to appropriate CRS for location of your HM
Create shapefile & generate perfect square using Advanced Digitizing panel
Obtain extents from square feature
Run 2 GDAL commands
- First to set cell size, CRS and then clip to shapefile square extents
- Second to convert to .asc file

For Satellite image

For single tile export

Load in just the '.map' files generated from Terra Incognita into QGIS
Merge rasters
Obtain extents from square feature
gdalwarp command will set cell size, CRS and then clip to shapefile square extents

For 4 tile export (large projects 40960 and above)

Load in just the '.map' files generated from Terra Incognita into QGIS
Merge Rasters
Create grid – 2 x 2 Feature
Move each quarter to its own shapefile layer
Obtain extents from each quarter feature
Run gdalwarp command for each quarter to set cell size and CRS and clip to shapefile square extents

And now detailed steps for:

Heightmap:

This tutorial covers single raster heightmap as per the kind you will find on opentopo, I will detail steps for heightmaps spread across multiple rasters in another update. as they will require additional steps likely including Merge / Build Virtual Raster commands. This section does not cover any re scaling of heightmap, which I would recommend against anyway. Remember Grid size x Cell size should = the same size (meters) as your source heightmap selection.

Drag and drop your heightmap '.asc' into QGIS

If you do use opentopo for source of Heightmap, make sure extract both the .asc and .prj files before proceeding with below. They should both be in the zip file from opentopo.

Set QGIS to appropriate CRS for location of your HM

Clicking on the CRS section bottom right within QGIS – will bring up the Project Properties for CRS

Select the CRS to match your real world data, in this example its ‘WGS 84 UTM zone 20N’ because the terrain is from the Montserrat in the Caribbean. See also UTM projection.
This will ensure your QGIS project space works appropriately with any other data you want to add - eg road shapefiles etc. Terrain Builder will only use UTM 31N but we'll get to that later.

Create shapefile & generate square feature using Advanced Digitizing panel

Top menu – Layer > Create Layer > New Shapefile Layer

Save to project folder location

Change Geometry type to ‘Polygon’

Match CRS so it is the same as that just configured in above step

Right click on your shapefile in layers window & select ‘Toggle Editing’

From menu – View → Toolbars → Advanced Digitizing Toolbar

Select ‘Add Polygon Feature’

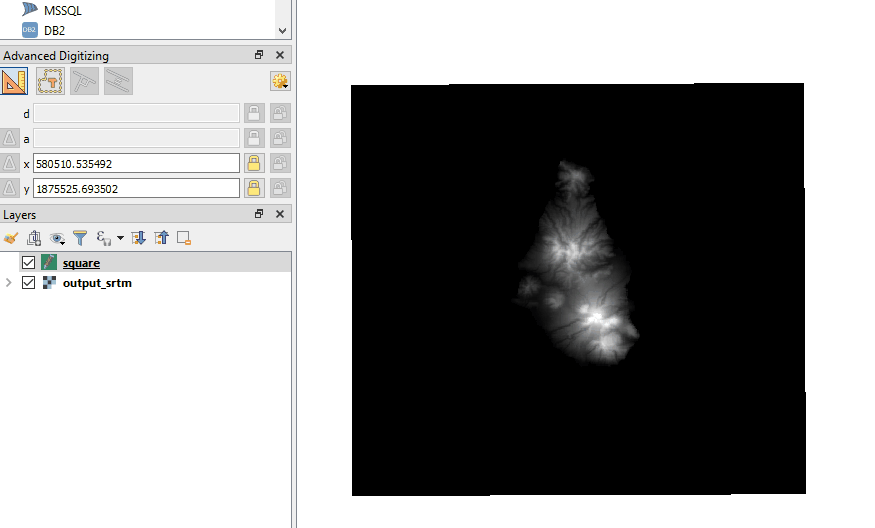

Select Enable advanced digitizing tools

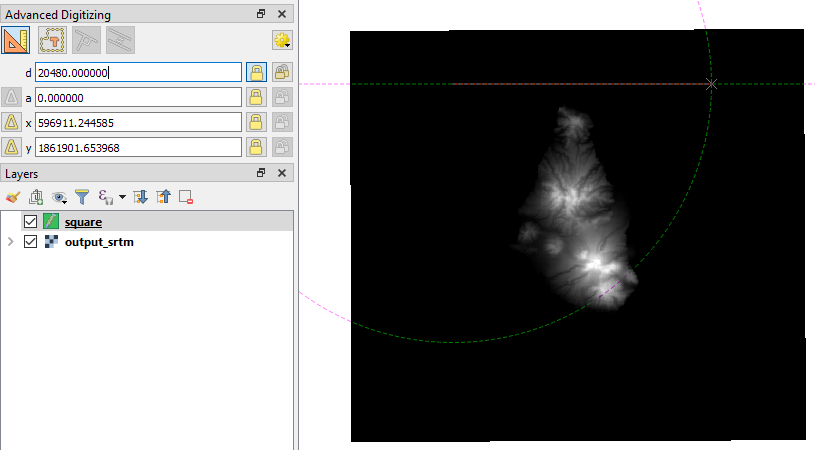

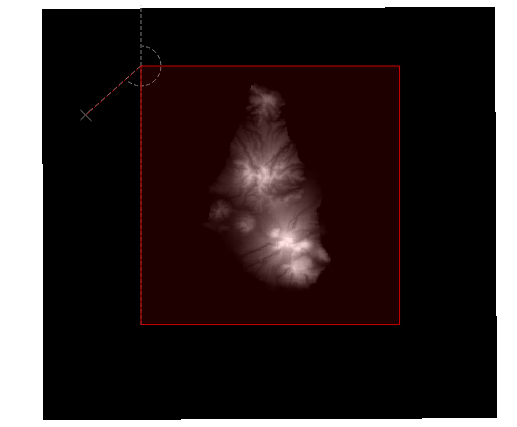

To create a perfect square, left mouse click for your top left starting point, move your mouse to the right a little, then press ‘d’ on keyboard, type in the exact width (distance) required (in this example ‘20480’) then immediately press Enter – be careful not to move the mouse before pressing Enter or it will mess up the number. Press left mouse click and you will have drawn your first horizontal line which turns red. By default this tool snaps to 90 degree angles, making it easy to draw your lines. Now to draw the vertical line start moving mouse your down, press ‘d’ again and type in same figure as above, press Enter and another left mouse click, repeat the process for the last 2 lines of the square.

See a short video example using the Advanced Digitizing tool:

After the last left mouse click from the step above, the tool is still waiting to plot more points, so to finalize the square do a right mouse click

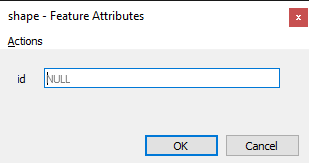

This will then bring up an attributes dialogue – just type any number and Enter

Save the above edits to the shapefile by clicking on the layer & selecting ‘Toggle Editing’

Obtain extents from square feature

Activate the toolbox if it is not already available

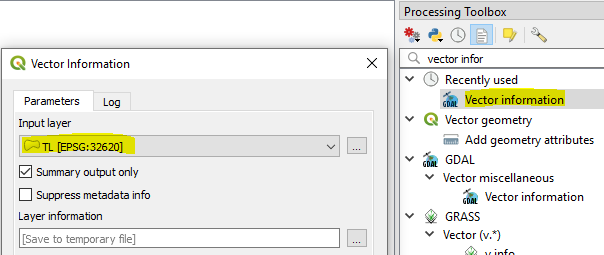

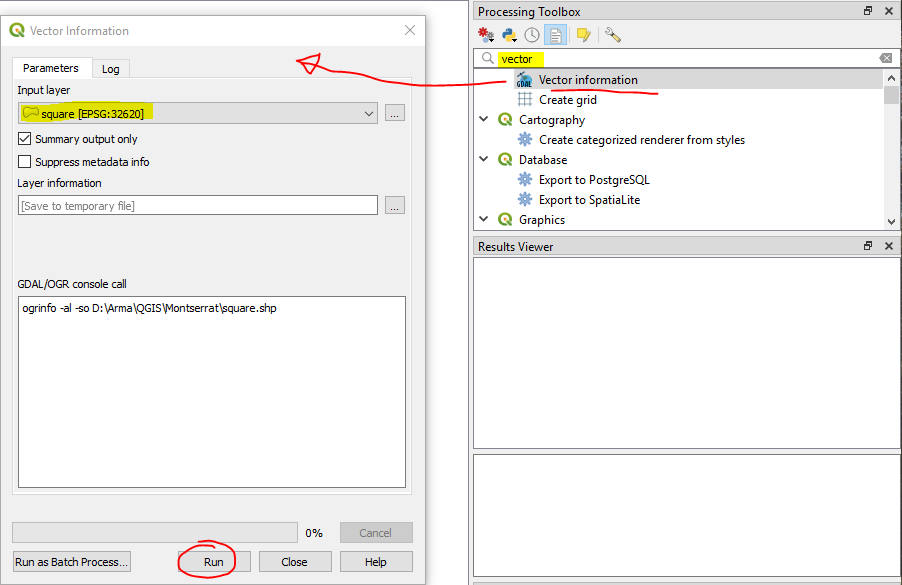

Start typing 'vector' in Processing Toolbox search bar, and you will see 'Vector information'

Double click it and make sure your square input layer is selected - then just click Run

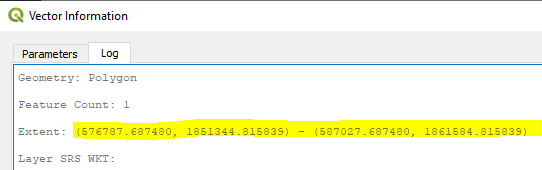

You will only need to copy the Extent figures, which we will use within the GDAL commands in the next step

Run the first GDAL command which will - set CRS, cell size and then clip to shapefile square extents

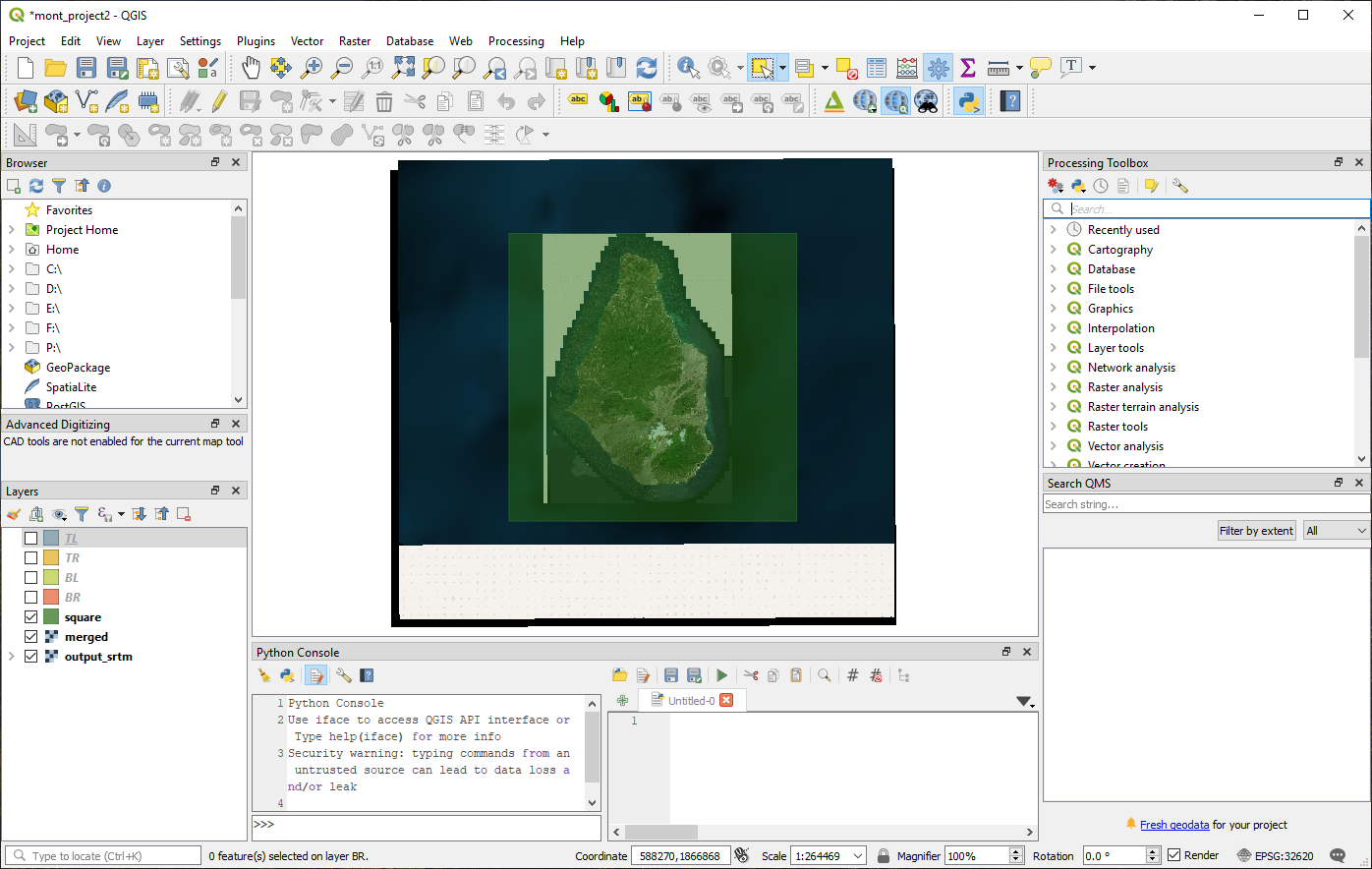

From menu - Plugins > Python Console

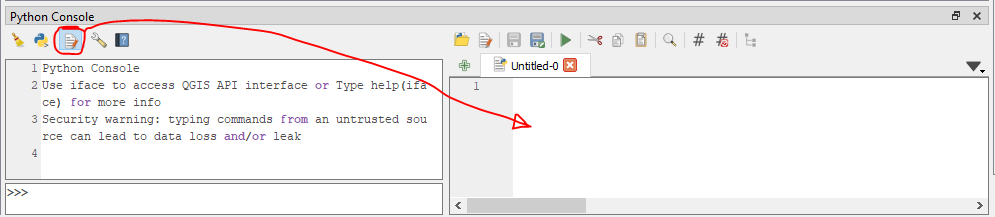

Click 'Show Editor'

The blank window on the right is where you will paste GDAL commands

Now you are ready to edit the command below to match your data - sections in bold are the parts to edit:

import os
os.system(r'''gdalwarp -t_srs EPSG:32620 -wo SOURCE_EXTRA=1000 -tr 5.0 5.0 -srcnodata “-9999” -r cubic -ot Float32 -of GTiff -te 576787.687480 1841104.815839 597267.687480 1861584.815839 D:/Arma/Heightmaps/Opentopo/output_srtm.asc D:/Arma/QGIS/Montserrat/converted.tif''')

Some explanation of the key parameters:

-t_srs EPSG:32620
CRS to match where the heightmap is from in the world.

-tr 5.0 5.0

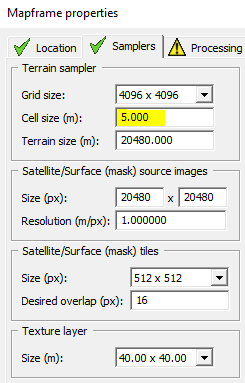

The desired resolution of your heightmap, match with Cell size set within your Mapframe properties in Terrain Builder:

-te 576787.687480 1841104.815839 597267.687480 1861584.815839
The 4 long figures represent the extents of your square, and should be replaced with your own figures obtained in previous step.

Update the paths to match where you are storing your source heightmap, and where you want the output tif saved to.

Input:
D:/Arma/Heightmaps/Opentopo/output_srtm.asc use double quotes around your input path if it contains any blanks

Output:
D:/Arma/QGIS/Montserrat/converted.tif

Run second GDAL command - converting tif from above step to a Terrain Builder friendly .asc

Remember to change the paths in below command to match where your files are located

import os
os.system(r'''gdal_translate -of AAIGrid D:/Arma/QGIS/Montserrat/converted.tif D:/Arma/QGIS/Montserrat/final.asc''')

Satellite image

For single tile export

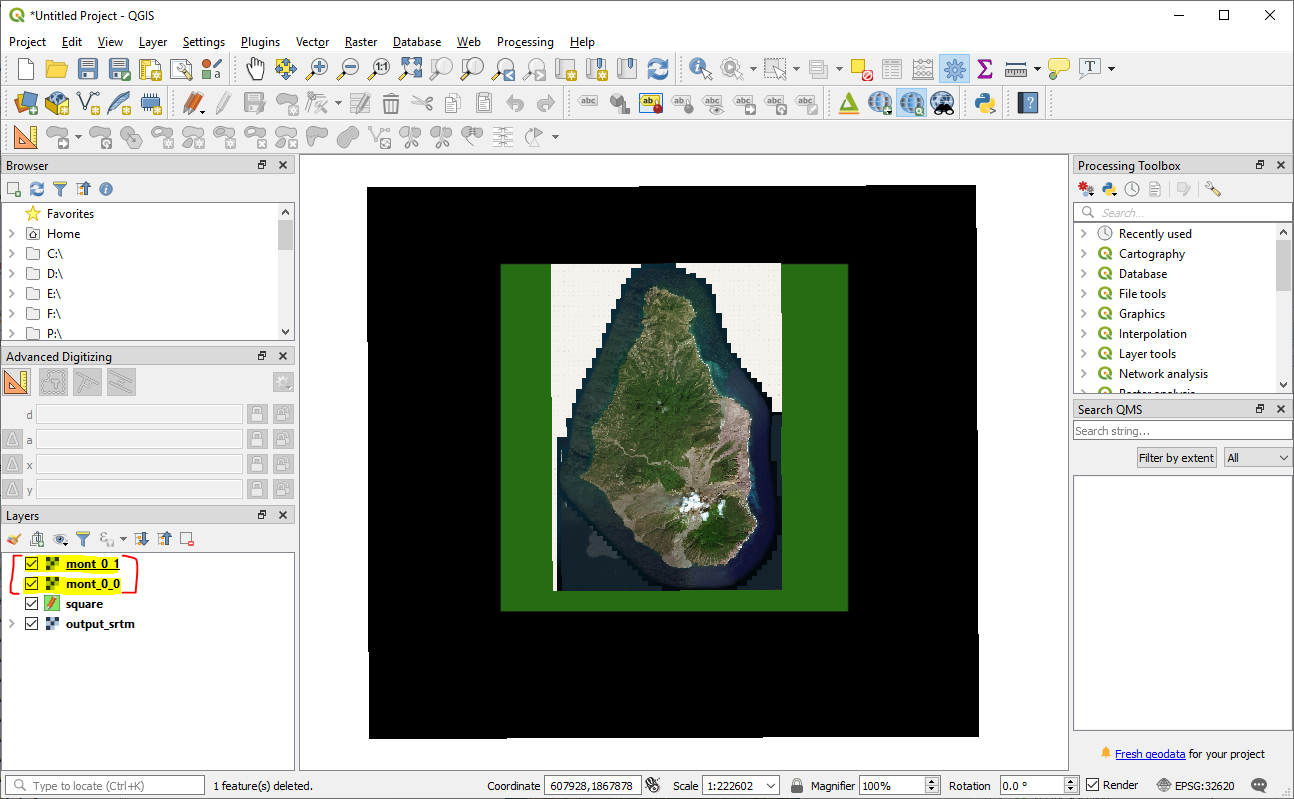

Load in just the '.map' files generated from Terra Incognita into QGIS

Merge Rasters

Top Menu - Raster → Miscellaneous → Merge

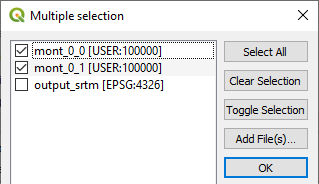

Select all your .map files as input layers

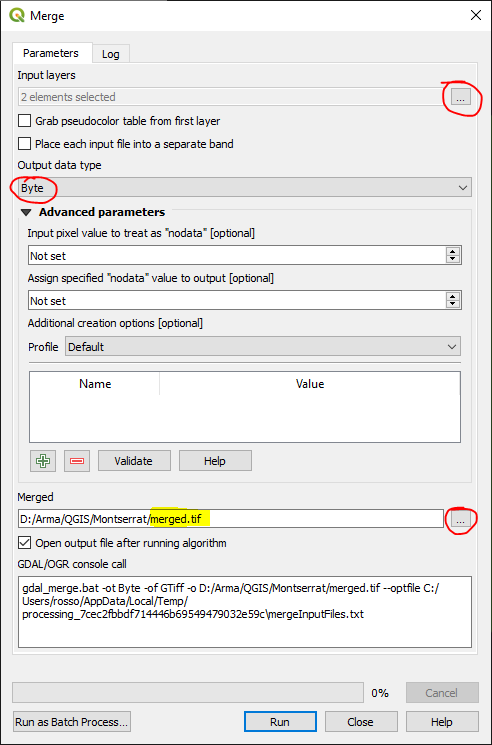

change Output data type to ‘Byte’ as the default is ‘Float32’.

Select ‘Save to File’ under Merged – as the default is to a temporary file.

Obtain extents from square feature

You should already have this from working on heightmap above 576787.687480 1841104.815839 597267.687480 1861584.815839

Run GDAL command

import os
os.system(r'''gdalwarp -t_srs EPSG:32620 -r cubic -wo SOURCE_EXTRA=1000 -tr 1.0 1.0 -r cubic -of BMP -te 576787.687480 1841104.815839 597267.687480 1861584.815839 D:/Arma/QGIS/Montserrat/merged.tif D:/Arma/QGIS/Montserrat/mont.bmp''')

Some explanation of the key parameters:

-t_srs EPSG:32620
Sets the CRS

-tr 1.0 1.0

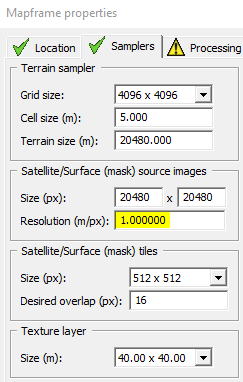

Sets the resolution of your satellite image to 1mtr per pixel - which is recommended. Make sure it matches your settings within Terrain Builder.

-te 576787.687480 1841104.815839 597267.687480 1861584.815839
Clips to shapefile square extents

For 4 tile export

Detailing additional steps required for a 4 tile export – which would suit those terrains that are 40960px x 40960px and higher.

Load in just the .map files into QGIS

Merge rasters - same as above (single tile export)

Create grid – 2 x 2 Feature

You will need to have created the square shapefile first – see above steps

Top Menu – View → Panels → Processing Toolbox

Processing Toolbox Menu – Vector Creation > Create Grid

Set Grid type to ‘Rectangle (polygon)’ & the Horizontal & Vertical to half the distance of your main square

Set it to save new grid feature to .shp file

After clicking 'Use Layer Extent' Select the shapefile layer for your square

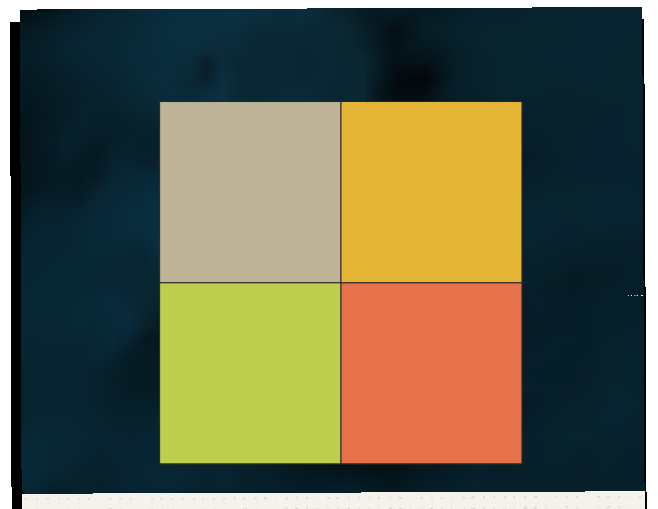

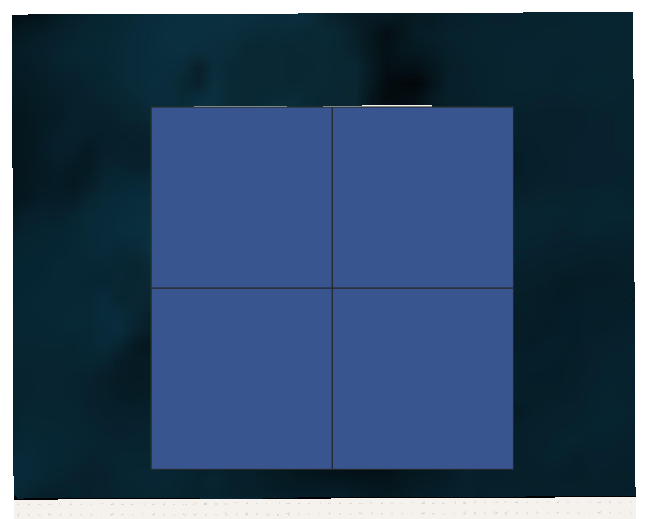

After clicking Run, your original square will then be Covered with a new grid of 4 tiles – perfect quarters of your original square

Move each quarter to its own shapefile layer

Because you will need to export each quarter separately for use in Terrain Builder, we will move each quarter onto its own shapefile layer.

Click Select Features -

And select the first quarter:

Top Menu – Edit > Copy Features

Then… Edit → Paste Features As → New Vector Layer

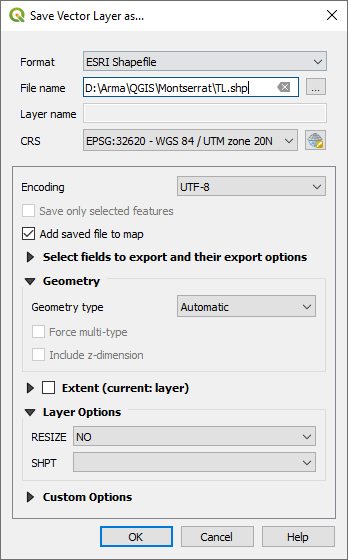

Save shapefile layer to something obvious

I’ve used ‘TL’ for top left.

Repeat for the remaining quarters and you’ll have something like below, ‘Grid’ can be deleted.

You will then have 4 tiles which we can use to gather each quarters extents

Obtain extents from each quarter feature

Copy extents to clipboard

And list them out for safe keeping -

TL - Extent: (576787.687480, 1851344.815839) - (587027.687480, 1861584.815839)
TR - Extent: (587027.687480, 1851344.815839) - (597267.687480, 1861584.815839)
BL - Extent: (576787.687480, 1841104.815839) - (587027.687480, 1851344.815839)
BR - Extent: (587027.687480, 1841104.815839) - (597267.687480, 1851344.815839)

Run GDAL command for each quarter to set cell size and CRS and clip to shapefile square extents

import os
os.system(r'''gdalwarp -t_srs EPSG:32620 -r cubic -wo SOURCE_EXTRA=1000 -tr 1.0 1.0 -r cubic -of BMP -te 576787.687480 1841104.815839 597267.687480 1861584.815839 D:/Arma/QGIS/Montserrat/merged.tif D:/Arma/QGIS/Montserrat/TR.bmp''')

Loading your assets into Terrain Builder

I would recommend saving copies of any files to be used in Terrain Builder into a separate terrain project folder. This will prevent your source project files being adversely affected, and potentially no longer working within QGIS - particularly relevant to those changes mentioned below.

Heightmap (.asc) edits

Open your asc in notepad and change the following to ensure it loads in Terrain builder:

Save to a new asc, whilst maintaining the original for use in your QGIS project space

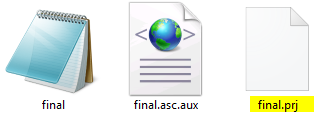

Before loading the asc file into Terrain Builder, delete the .prj file. Otherwise it will not import into TB.

Satellite image

Before loading the satellite image into Terrain Builder delete the .bmp.aux file

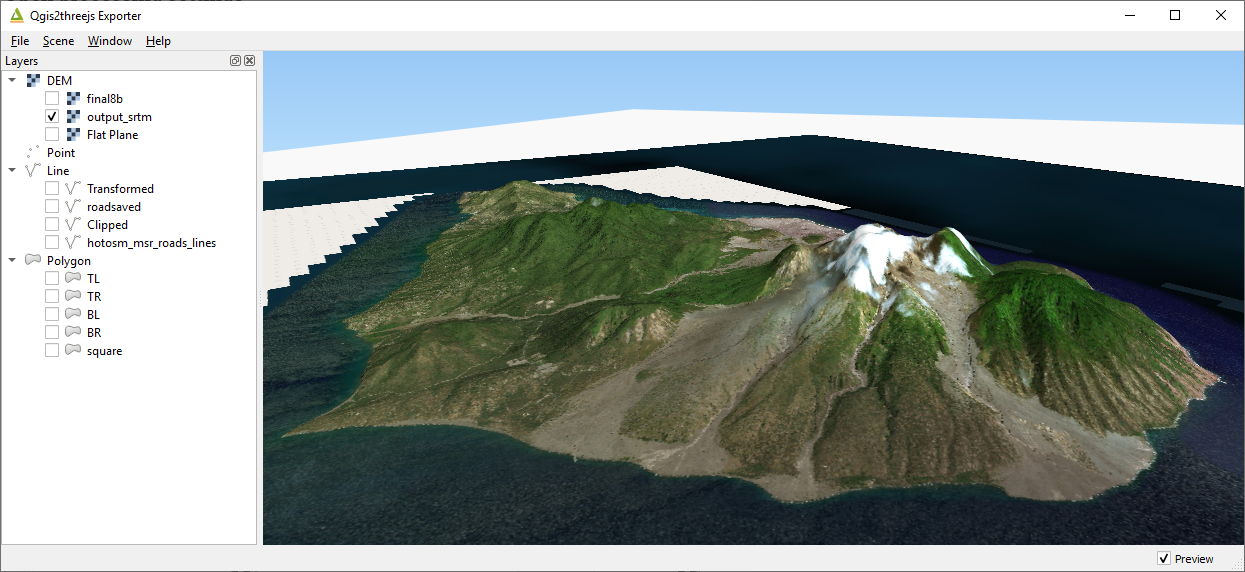

Managing the project assets within QGIS

Save your QGIS project so that you can return to export further data at a later date.

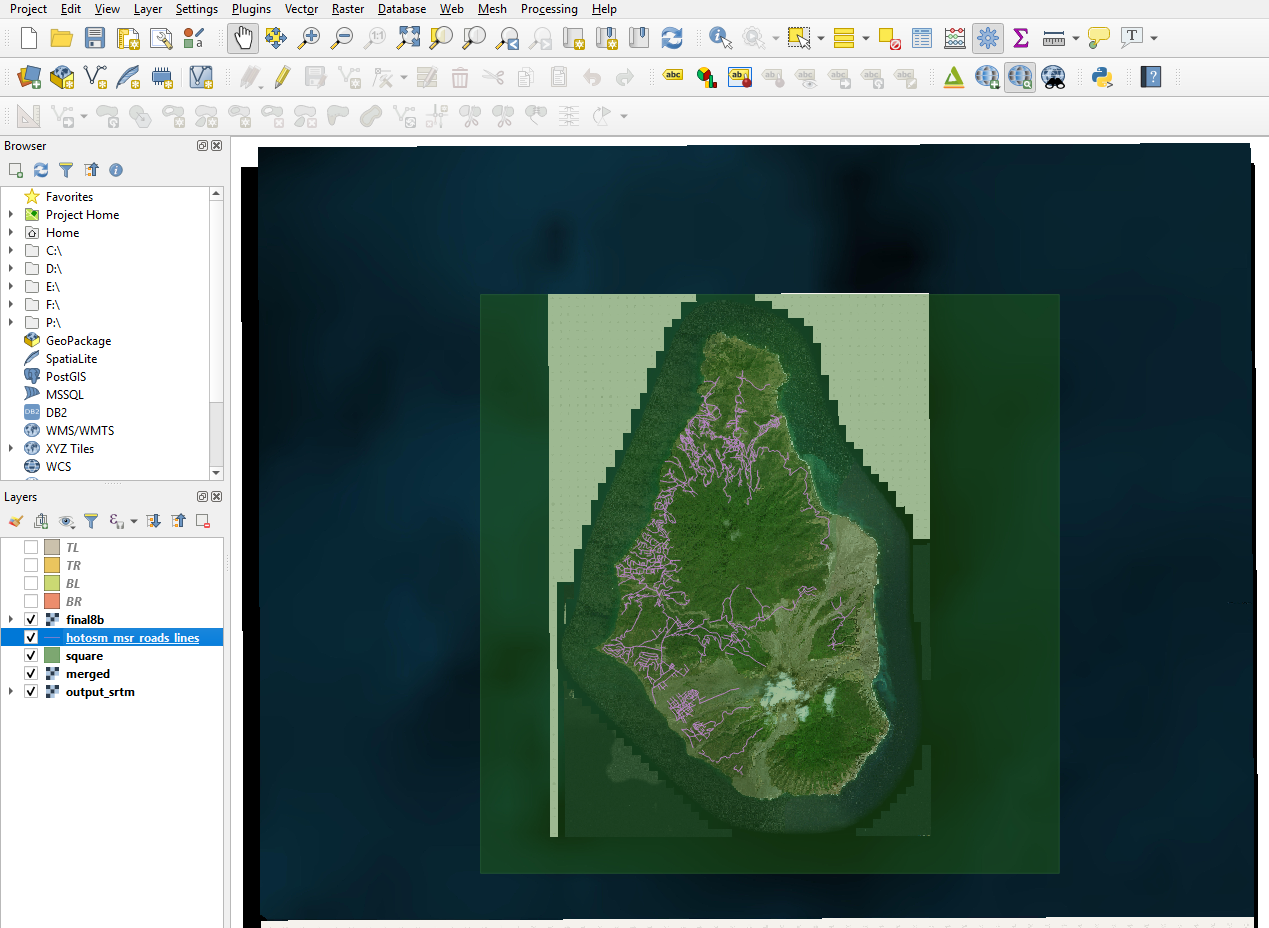

Layers can be tidied up to hold the essentials ready for the next time you want to re-run GDAL commands, or export anything else like road shapefiles or mask layers etc.

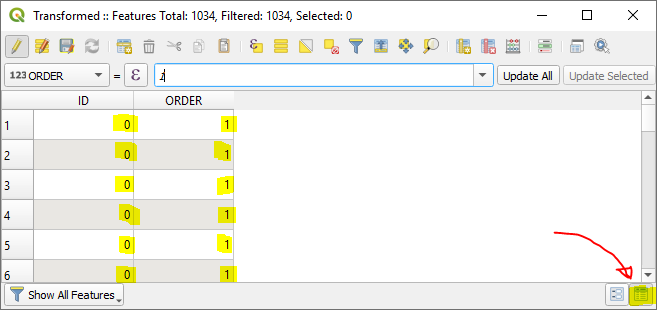

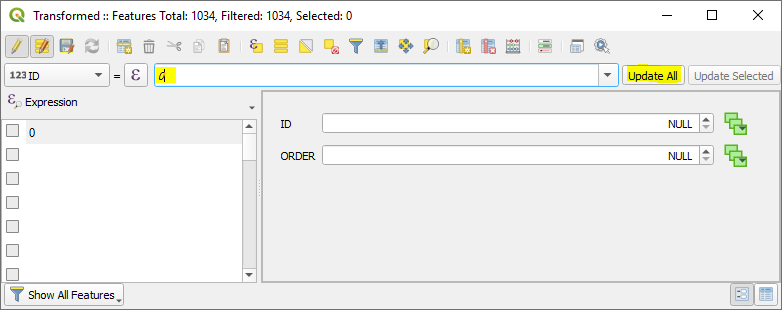

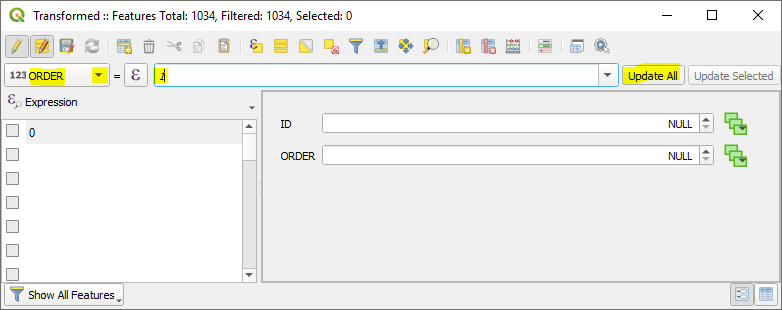

Preparing Road Shapefile

Load into QGIS (drag and drop) road shapefile

In this example I got a good dataset from - https://data.humdata.org/

Clip vector to square shape Top Menu - Vector > Geoprocessing Tools > Clip

Save features from clip to new shapefile - selecting appropriate CRS, in this example CRS UTM-20

Top Menu - Layer > Save As

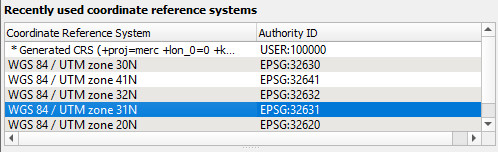

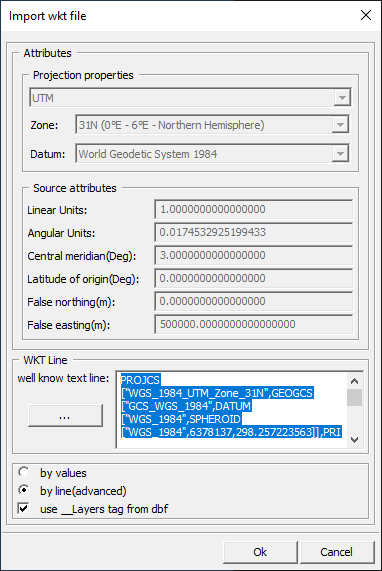

Set road shapefile to CRS - 31N

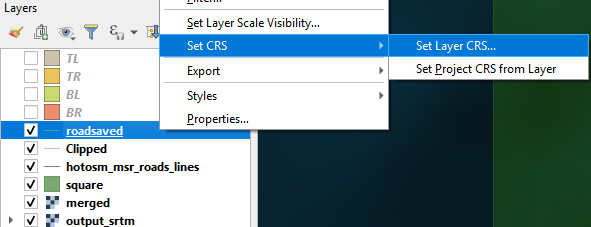

RMB on road shapefile > Set CRS > Set Layer CRS

Set QGIS project CRS to UTM- 31N (bottom right corner):

Collect extents from your square shapefile:

Extent: (576787.687480, 1841104.815839) - (597267.687480, 1861584.815839)

The first two values will be used in the v.transform step below.

v.transform on road shapefile using calculated extents from square shapefile

Your heightmap asc must adhere to Terrain Builders required values of easting 200000 and northing 0 Your road shapefile also needs to line up to the same values - we will use v.transform to achieve this

So taking the extent values we grabbed in previous step -
We will do the following calculations to bring these values to (200000 and 0):
Easting: 576787.687480 - 376787.68748 = 200000
Northing: 1841104.815839 - 1841104.815839 = 0

-376787.68748
-1841104.815839

Having figured out the correct figures plug them into the v.transform process
